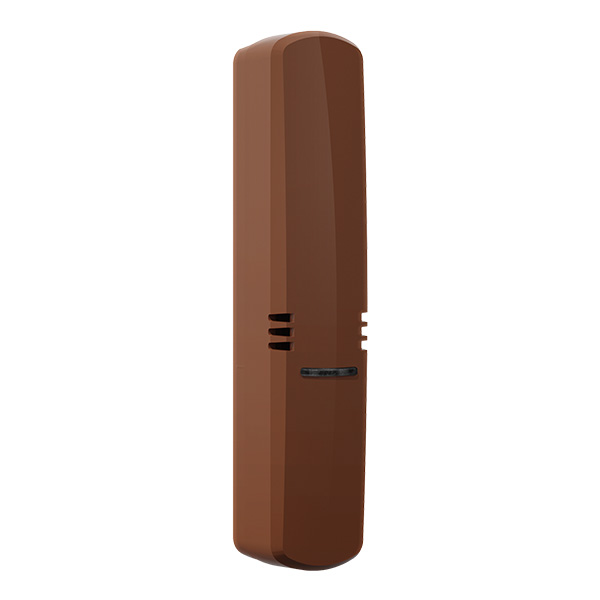

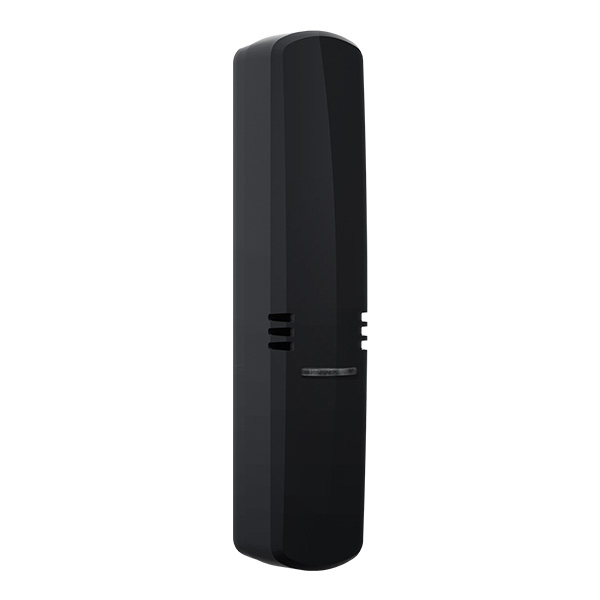

The TPH-2 sensor measures temperature, pressure and humidity. The sensor can be connected via SATEL BUS (RS-485) to the SATEL control panel that supports bus devices.
- temperature sensor:
- measuring range: -10°C…+55°C
- measurement accuracy: ±0.2°C
- barometric pressure sensor:
- measuring range: 260…1260 hPa
- measurement accuracy: ±0.1 hPa
- humidity sensor:
- measuring range: 0% RH…93% RH
- measurement accuracy: ±1.5%RH
- SATEL BUS – RS-485 communication bus
- firmware update via the SATEL BUS
- LED indicator
- sensors supervision
- powered by 12 V DC
