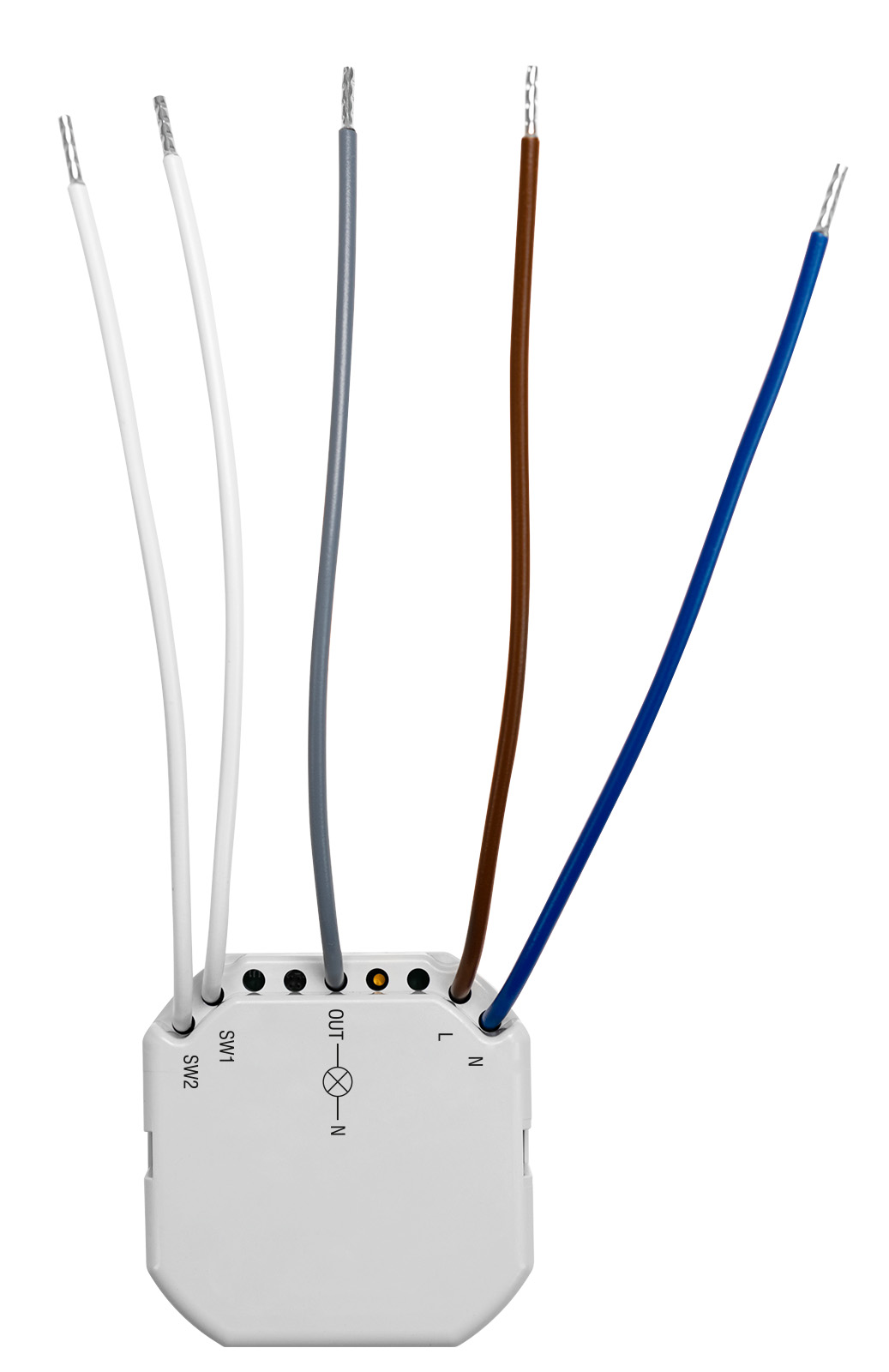

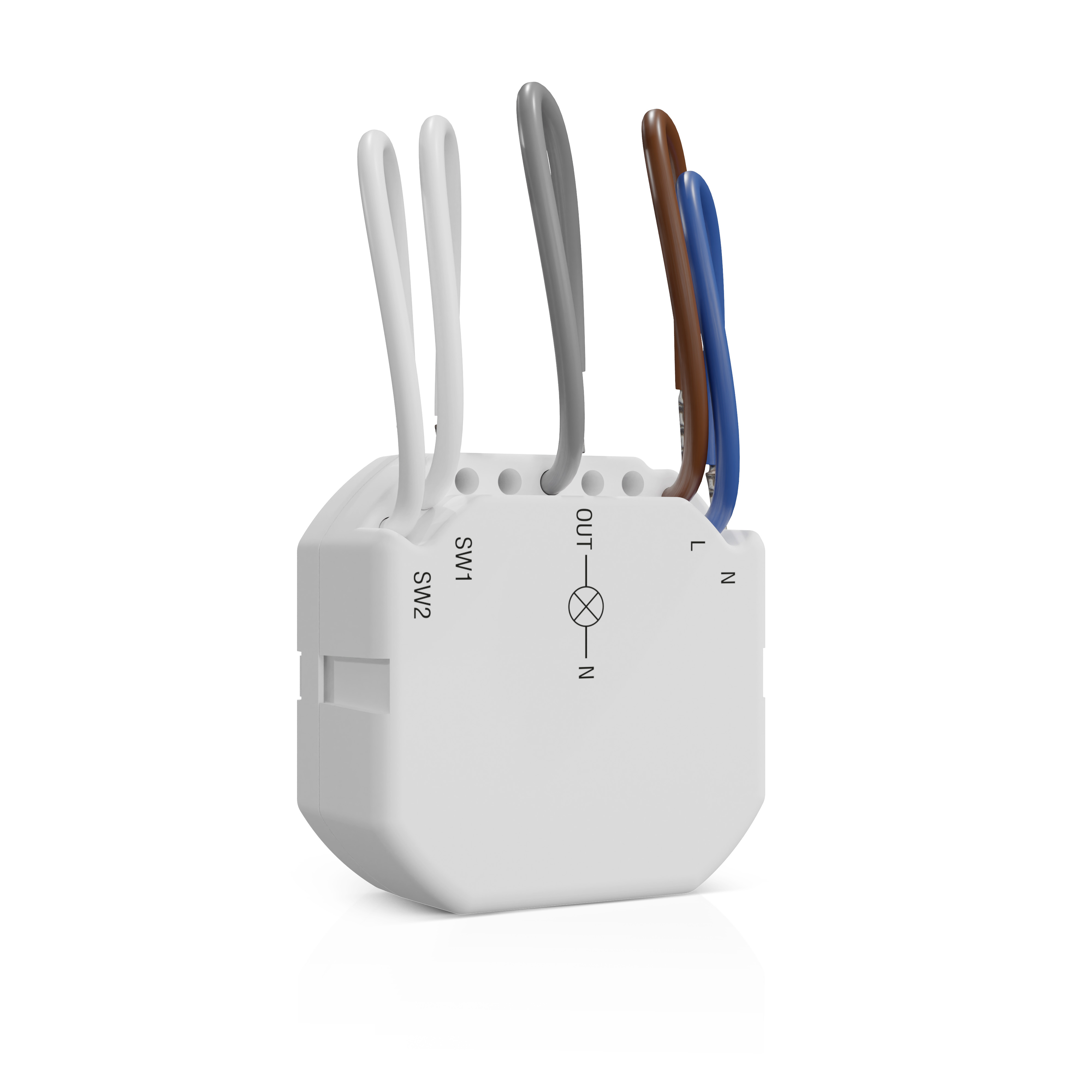

The ADC-200 dimmer (Smart Dimmer) is used to adjust the brightness of 230 VAC lighting. It can be used to turn on / turn off / dim down / dim up the lights.
- control of various light sources:
- 230 V incandescent bulbs
- 230 V halogen bulbs
- dimmable 230 V LED bulbs
- light sources powered by an electronic or magnetic transformer
- connected load automatically detected
- remote control or local control by means of control inputs
- stepless adjustment of light brightness
- memory of set brightness level
- 2 control inputs:
- capability to connect a push-button or a switch
- lighting controlled locally
- capability to control any device in the system
- compatible with
- BE WAVE Hybrid control panels
- BE WAVE Smart HUB controllers
- operation in the 868 MHz frequency band
- AES encrypted two-way radio communication
- Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
- remote settings programming
- remote firmware update
- firmware protection against overload and overheating
- powered by 230 VAC
- installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
