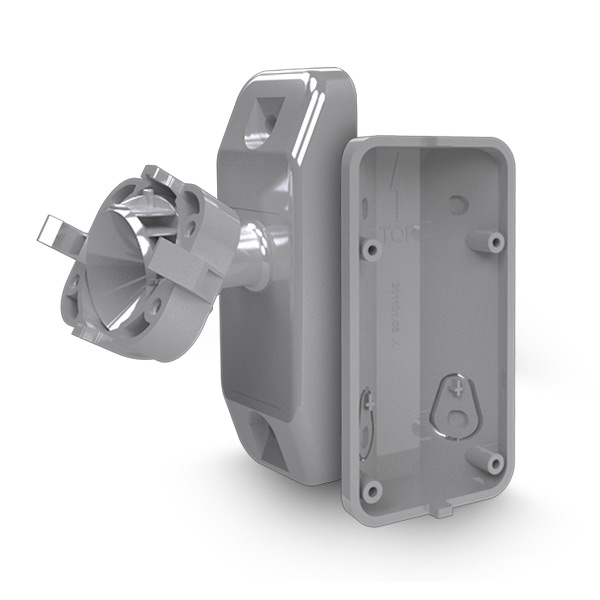

The BRACKET C set of wall brackets is designed for mounting the OPAL-series and AOD-210 outdoor motion detectors. The set consists of two brackets: ball-joint and angled, making it easier to find the optimal position relative to the detection zone.

Each of the brackets is also provided with a tamper switch responding to any attempt to pull the device away from the wall.

Angle type bracket:

• for mounting on a flat surface (rectangular pillar, wall, inside corner of two walls)
• tilt angle between detector base and bracket mounting surface: 45°
• tamper element breaking off at an attempt to detach the bracket from the wall

Ball-joint swivel type bracket:

• for mounting on a flat surface (rectangular pillar, wall)
• angle between detector base and bracket mounting surface adjustable horizontally through 90° (+/- 45°)
• angle between detector base and bracket mounting surface adjustable vertically through 60° (+/- 30°)
• tamper switch which responds to an attempt to pull the bracket away from wall, complete with 3 wires for connecting it to the NC or NO type circuit

BRACKET C GY is also available in colours: white BRACKET C, dedicated for OPAL, OPAL Plus, OPAL Pro and AOD-210, and dark grey BRACKET C DG, dedicated for detectors with OPC-3 DG enclosure.

BRACKET C GY can be expanded with components of the BRACKET E GY distance bracket:

• BRACKET E-1 GY - Body
• BRACKET E-2B GY - Insert for the OPAL/AOD-210 outdoor detectors
• BRACKET E-3 GY - Spacer (height 30 mm)
• BRACKET E-6 GY - Tamper sensor (1 NO/NC switch, 50 cm cable length)
